Push your Yamaha G29/Drive to the next level with the 36/48V 600 Amp 19-Spline High Speed Motor and Controller Kit, built for serious performance gains. This high-output setup combines a powerful 600-amp controller with a rugged high-speed motor to deliver hard-hitting acceleration, higher top speeds, and smooth, responsive power delivery. A 48V solenoid is also included, ensuring reliable power engagement and a more seamless installation.

Motor Features:

• Yamaha G29/Drive 48 volt high speed motor
• Works with Yamaha G19 or G22, but speed sensor plug may need to be sourced from OEM motor
• 19-spline coupler
• Direct factory motor replacement
• Includes a 1-year warranty
• With upgraded controller:
  • Speed up to 23 mph at 48 volts
  • Up to 25% increase in torque
  • 10 HP Peak

Controller Features:

• 600-Amp Bluetooth Navitas Controller for 36/48-Volt Systems
• Adjust the Top Speed, Acceleration and Regenerative Braking on-the-fly
• Increase Range
• Easy Plug and Play installation
• Built-in Protection to prevent motor burn-out
• Compatible with series and shunt systems

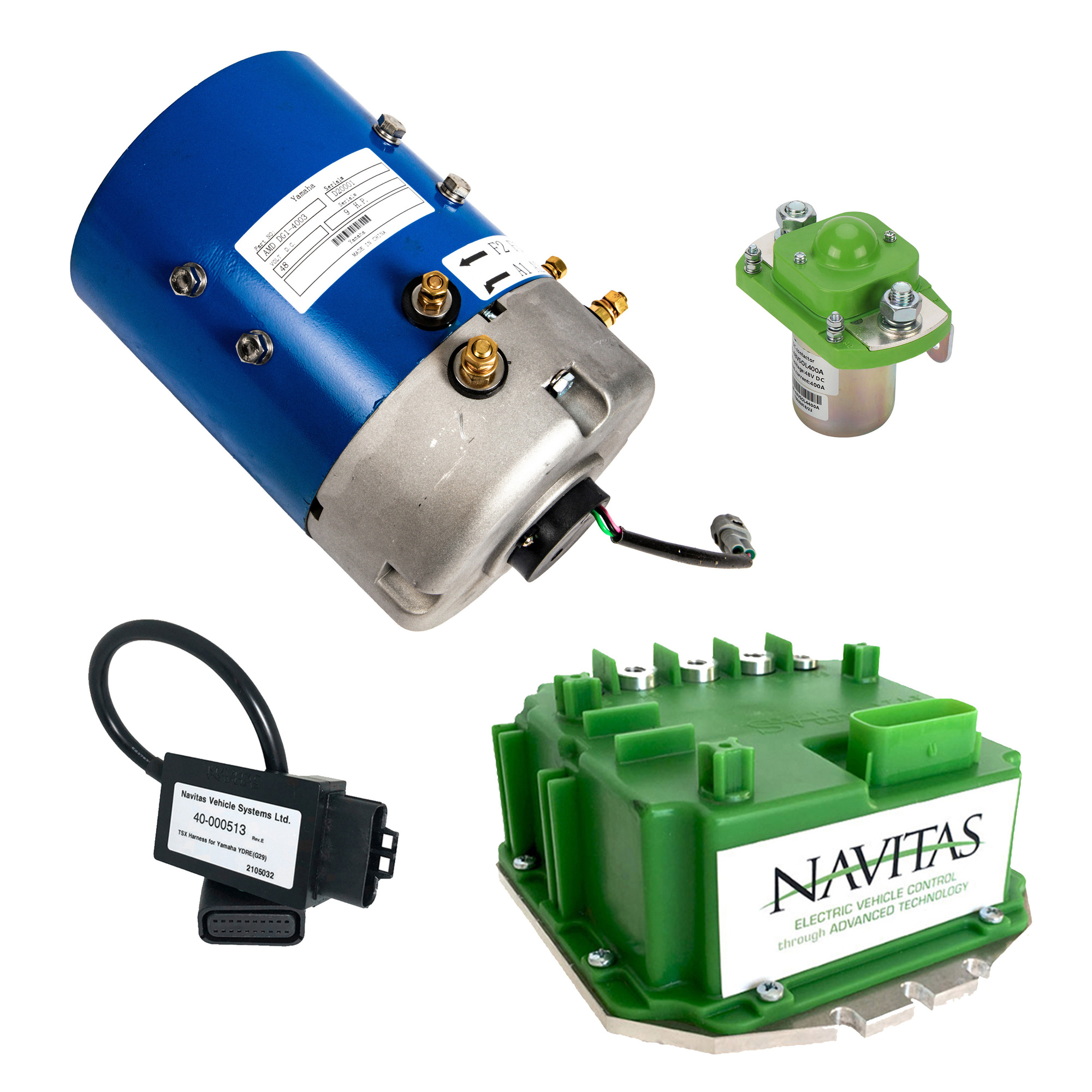

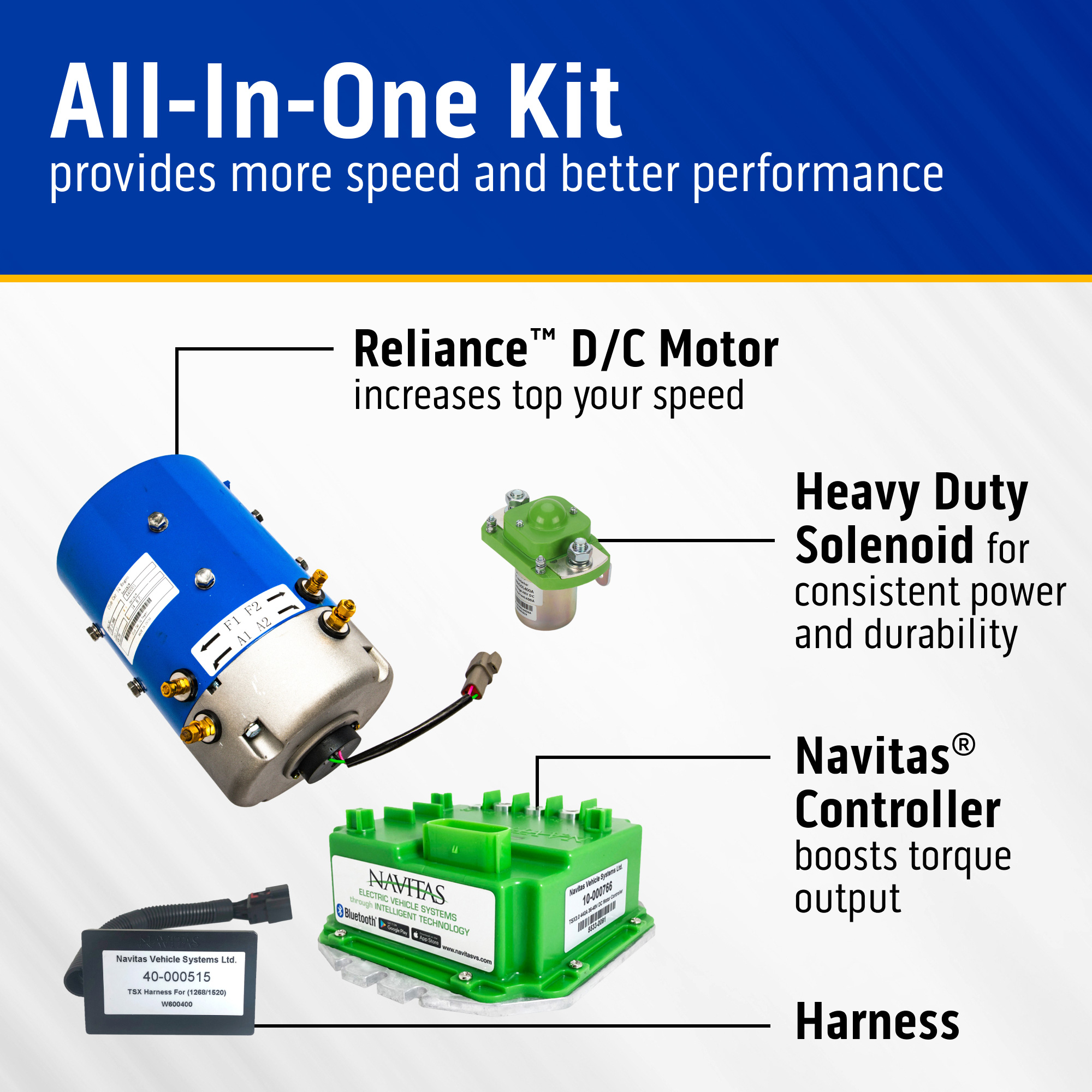

Kit Includes:

• Navitas TSX3.0 600A 36-48V DC Controller - 25-025
• Yamaha G29/Drive TSX Harness - 31926
• Bolt 48V HD Solenoid (36V Compatible) - 33-001

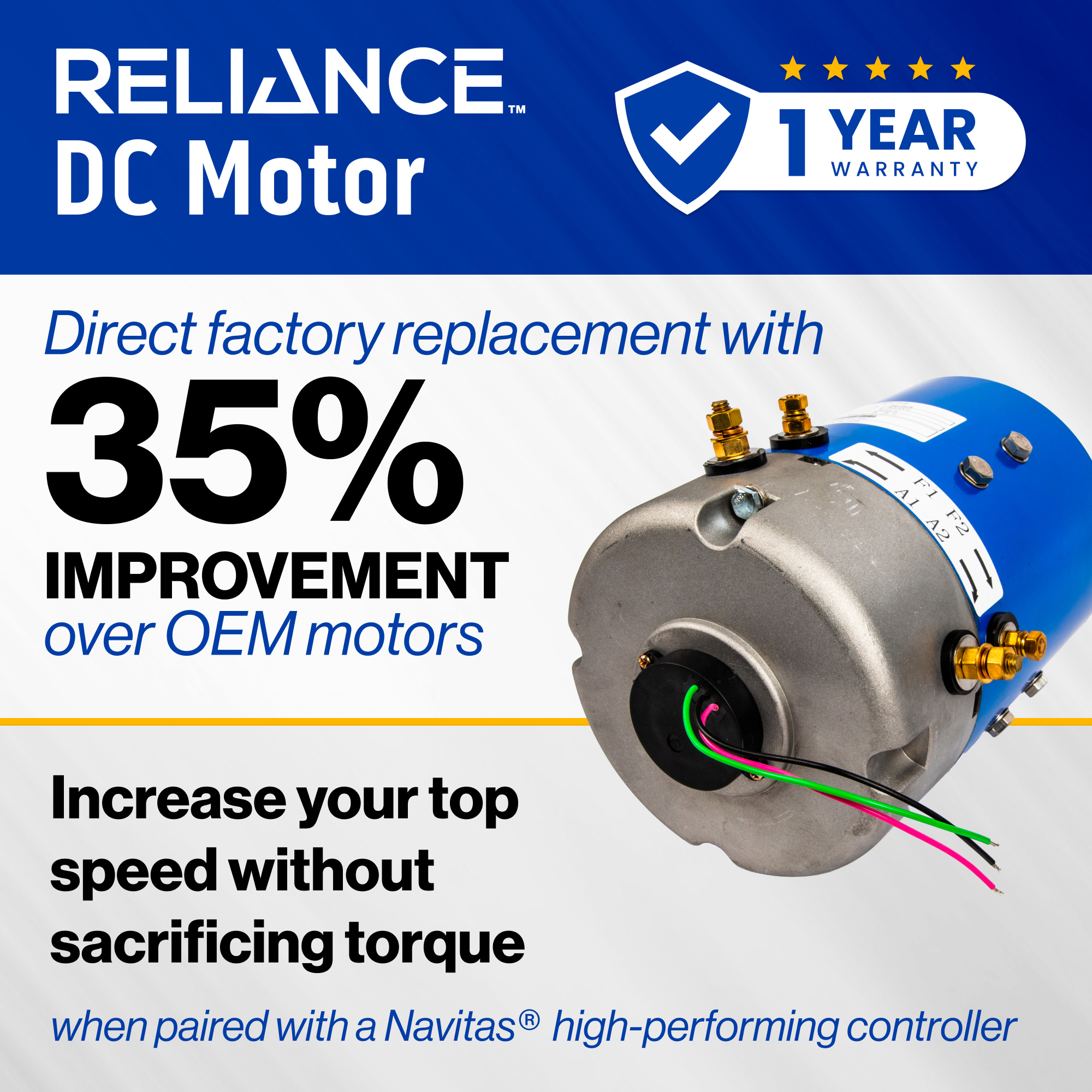

• Reliance Yamaha G29/Drive 19-Spline High Speed Motor - 25-517

New Motor Break-In Instructions:

Follow these steps carefully:

• 1. Initial Drive: Drive the vehicle for 8–10 miles at varying speeds, taking care to accelerate gently during this period.
• 2. Temperature Monitoring:
  • Drive on a level surface, such as pavement or asphalt. Gradually accelerate and maintain full speed for 5–10 minutes. Then, stop and check the motor temperature.
  • During the first 30 minutes of use, check the motor temperature every 10 minutes. To do this, touch the center section of the motor near the aluminum end bell (silver component).
  • If the aluminum end bell is too hot to touch, stop using the motor and allow it to cool down.
  • If you can hold your hand on the motor for more than 5 seconds, it is safe to continue driving for a few more miles before rechecking the temperature. Repeat steps 1 and 2 until the 8-10 mile break-in period is completed and the motor operates at a cooler temperature. Following this process will help ensure your electric motor is properly conditioned for long-term use.
• CAUTION: Exercise caution while checking the motor. Avoid touching any exposed electrical connections while the power is on.
